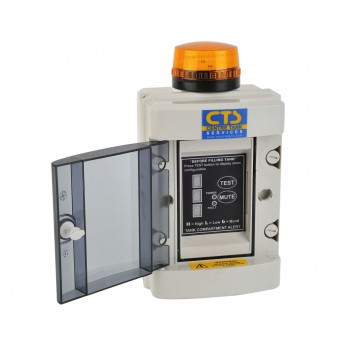

Mains Multi-Compartment Fuel Tank Alarm

The Mains Operated Multi-Compartment Fuel Tank Alarm has three functions; to detect and warn of a tank overfill, a high/low liquid level and a bund leak. If this fuel tank alarm identifies any of these issues, the zone in question will light up on the alarm’s screen, combined with an alarm sounder and flashing orange strobe, which provides the user with a warning. Each zone can be configured in any of the three functions High, Low or Bund, enabling the complete customisation of these fuel tank alarms based upon the user's requirements with a very simple set of electrical jumpers. An option is available complete with three relays, to allow external equipment to be connected to each zone of the tank level alarm such as building management or alarm systems. This overfill and bund alarm also has the additional feature of controlling the pump from the relays (if fitted). When the tank contents are 'low', the pump switches on and stays on until 'high' is reached. Please note: The probes required do not come as standard with the fuel tank alarm box. Please view the accessories table to select the combination you need.

• Weatherproof IP55 rated box
• Test and mute functions
• 90db sounder
• Automatically reversed float logic for 'low zones'
• Accepts multiple voltages of 110v, 230v, 12v and 24v
• Suitable for diesel, biodiesel, light oils and water based fluids
• Option available with 3 relays
