Ultra Compact Oil Tank Filter Kit

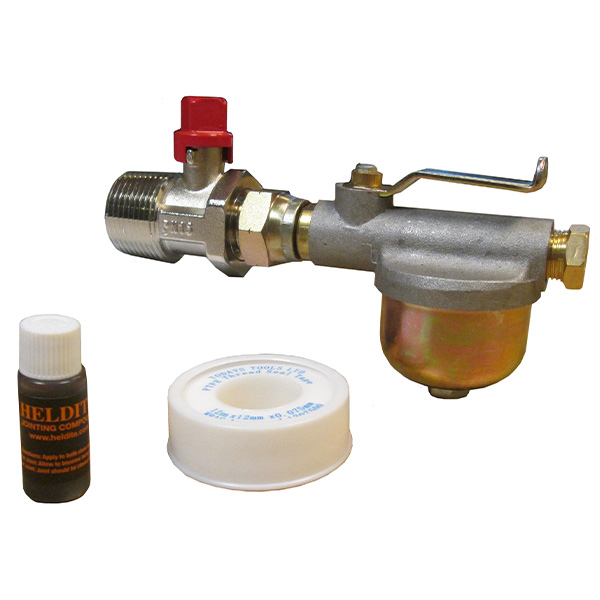

The Ultra Compact Oil Tank Filter Kit is designed for bottom outlet domestic heating oil tanks to remove debris with instant isolation and no pollution risk. The kit is comprised of the Ultra Compact isolation valve, 50 micron oil filter, PTFE tape, Heldite and all of the fittings required for installation.

On other oil tank filter assemblies, an isolation valve is not the first component screwed into the tank which means that if the filter valve needs replacing then the tank needs to be drained. By having the Ultra Compact valve installed first, this filter assembly kit saves the engineer the couple of hours it would previously have taken to pump the tank out, replace the filter valve and then pump the heating oil back in.

The Ultra Compact oil tank isolator valve is also available alone to replace the 1" BSPT x 1/2" BSPP adaptor if a generic filter kit is already installed. Both the filter kit and the valve alone can be retrofitted during service or at the time of the original tank installation.

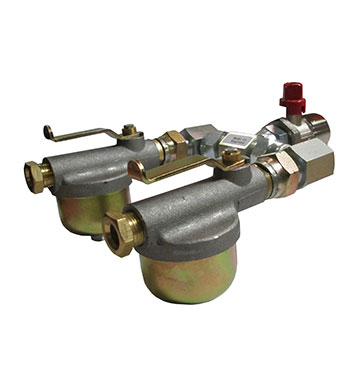

A double take off version is also available if the oil tank in question is feeding two systems.

Features of the Ultra Compact Oil Tank Filter Assembly:

• 50 micron oil filter
• All fittings required for installation
• Can be retrofitted to bottom outlet tanks
• PTFE tape & Heldite
• 1" M BSP isolation valve inlet
• 3/8" F BSP or 10mm compression outlet
• Double take off version available for tanks feeding two systems
