Contoil VZO 4 Domestic Heating Oil Meter

Contoil VZO 4 Domestic Heating Oil Meter
Product Code: OE0046
Availability: In Stock
Prices from: £252.13 (inc VAT)
Ex VAT: £210.11

Delivery

Order total Delivery
Under £30.00 (+VAT) £20.00
Over £30.00 (+VAT) £15.00

Available Options


* Model:

Qty:     - OR -   Add to Wish List
Add to Compare

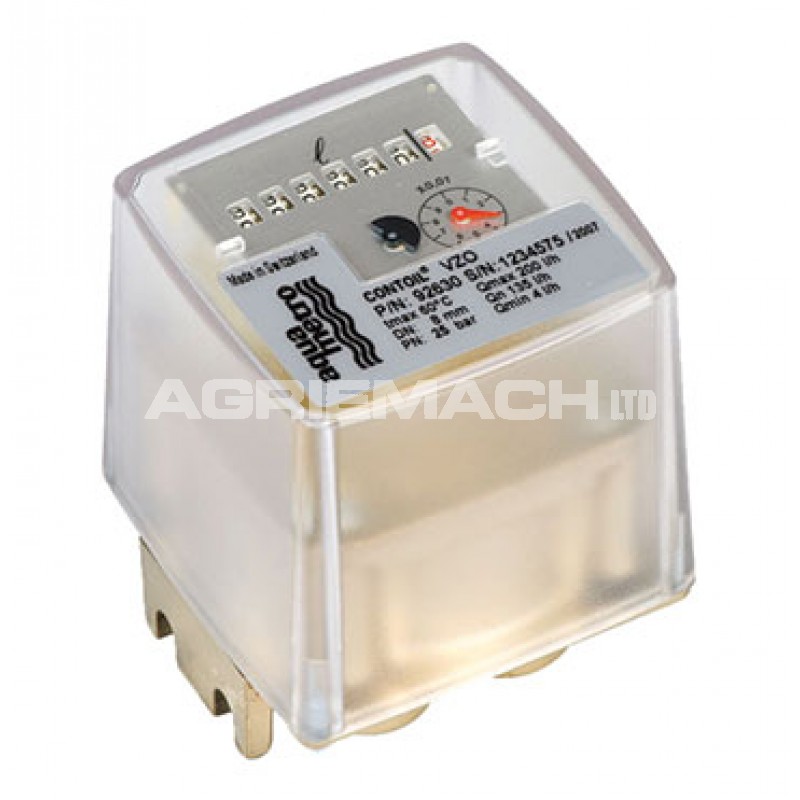

The Contoil VZO 4 Heating Oil Meter is an industry recognised mechanical display meter from Aquametro. Thanks to its ability to measure even the smallest quantities of fuel oil consumption with great accuracy, this Aquametro oil meter is designed for domestic heating oil applications, which the low flow version suitable for single AGA use. A version of the VZO 4 Contoil flow meter comes complete with a reed switch pulse output to send the consumption information to an building management system or external display for convenient remote viewing.

These mechanical heating oil meters can be retrofitted to any existing boiler/burner systems, and their versatility allows them to be installed indoors, outdoors, vertically, horizontally and diagonally.

Features of VZO 4 Contoil Aquametro Heating Oil Meter:

  • Mechanical display heating oil meter
  • Flow rate: 0.5-50ltr Per Hour
  • +/-1% accuracy
  • 7 digit non-resettable totaliser
  • Dial indicating 0.009l
  • 1/8” F BSP inlet/outlet
  • Maximum operating temperature of +60°C
  • Indoor or outdoor use
  • Can be retrofitted to existing boiler/burner system
  • Compression converter available as an accessory
Code Product Description Price (excl VAT)
CTS2308 Contoil VZO 8 Fuel Oil Pulse Meter Max Flow (lph) – 135
1 pulse per ltr
Pressure (bar)-(psi) 25-362
¼” F BSP
7 digit non-resettable totaliser
Max Fluid Temperature - +60°C
£706.28
OE0046 HZ5 Domestic Oil Meter Max Flow (lph) - 40
Pressure (bar)-(psi) 25 - 362
Boiler Capacity (kW) - 7-400
1⁄8" F DIN 3852-X-G
7 digit non-resettable totaliser
Max Fluid Temperature - +70ºc
£210.11
CTS2300 Contoil VZO 4 Heating Oil Meter Max Flow (lph) – 50
Pressure (bar)-(psi) 25-362
1/8” F BSP
7 digit non-resettable totaliser
Max Fluid Temperature - +60°C
IP Rating: IP50
£343.26
CTS2301 Contoil VZO 4 Heating Oil Meter - Low Flow Max Flow (lph) – 40
Pressure (bar)-(psi) 25-362
1/8” F BSP
7 digit non-resettable totaliser
Max Fluid Temperature - +60°C
£372.68
CTS2302 Contoil VZO 8 Fuel Oil Meter Max Flow (lph) – 135
Pressure (bar)-(psi) 25-362
¼” F BSP
7 digit non-resettable totaliser
Max Fluid Temperature - +60°C
IP Rating: IP50
£459.00
CTS2307 Contoil VZO 4 Heating Oil Pulse Meter Max Flow (lph) – 50
0.1 pulses per ltr
Pressure (bar)-(psi) 25-362
1/8” F BSP
7 digit non-resettable totaliser
Max Fluid Temperature - +60°C
£581.52

Accessories

Code Accessory Price (excl VAT)
OE0046F Compression Converter
To convert the 1/8" F BSP version to 10mm compression
£13.84
