Piusi Oil Air Operated Diaphragm Pump
Availability: In Stock
Ex VAT: £708.60
Delivery
| Order total | Delivery |
| Under £30.00 (+VAT) | £20.00 |
| Over £30.00 (+VAT) | £15.00 |
Add to Compare

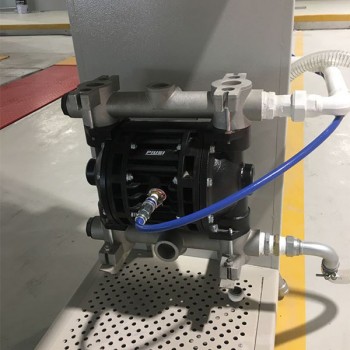

The Piusi Oil AODD Pump has been designed to transfer oil with high viscosities by using an NBR diaphragm. This Air Operated Diaphragm Pump uses air in order to transfer clean and contaminated oils such as the suspended solids found in spent oil. These oil pumps have no mains connector because they are powered by air, and are often used in garages and workshops where air lines are already set up. Each model varies on port size from ½” to 1 ½” G Port, as well as flow rate, ranging from 50 l/min to 220l/min for bigger installations. The Piusi Oil Transfer Pumps have been made suitable for severe duty conditions or operations taking place in potentially explosive atmospheres. These brand new AODD Pumps are the first of its type to be introduced into the Piusi pump range.
Features of the Piusi AODD Oil Transfer Pump:
- Single Membrane Air Operated Diaphragm Pump
- Self-Priming
- Aluminium or Polypropylene Body
- NBR Diaphragm & Balls
- 70m Max Head
- 7 Bar Max Air Supply Pressure
- 4mm Solid Handling
- ATEX to Zone 2
- Four versions available depending on flow rate and port size
| Code | Product | Description | Price (excl VAT) | |
|---|---|---|---|---|

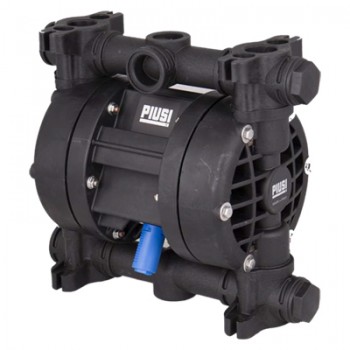

| F00208P10 | Piusi MA140 AODD Oil Pump | 1” G Inlet/Outlet 100 l/min Flow Rate G 3/8” F Air Connection 6m Self Priming |
£708.60 | |

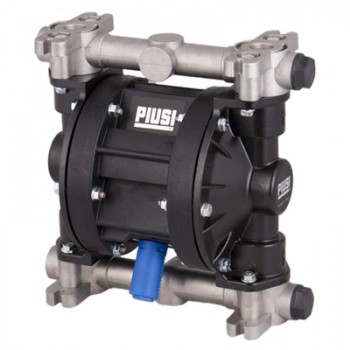

| F00208A00 | Piusi MA130 AODD Oil Pump | ½” G Inlet/Outlet 50 l/min Flow Rate G 3/8” F Air Connection 5m Self Priming |
£729.88 | |

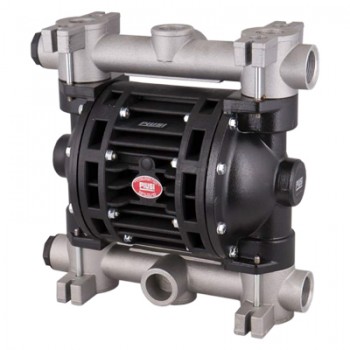

| F00208A20 | Piusi MA190 AODD Oil Pump | 1 1/4” G Inlet/Outlet 220 l/min Flow Rate G ½” F Air Connection 6m Self Priming |
£1,870.52 | |

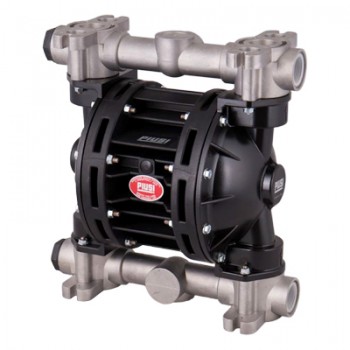

| F00208A10 | Piusi MA180 AODD Oil Pump | 1” G Inlet/Outlet 150 l/min Flow Rate G 3/8” F Air Connection 5m Self Priming |
£906.04 |
