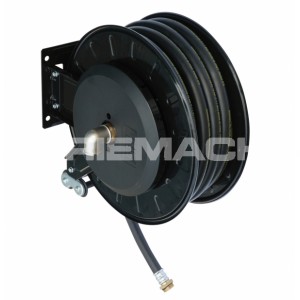

Piusi Automatic Diesel Hose Reel

Product Code: F00750080
Availability: In Stock

Prices from: £389.04 (inc VAT)
Ex VAT: £324.20

Delivery

Order total	Delivery
Under £30.00 (+VAT)	£20.00
Over £30.00 (+VAT)	£15.00

Available Options

* Model:

Qty: - OR - Add to Wish List
Add to Compare

0 reviews | Write a review

Description Reviews (0) Ask a question

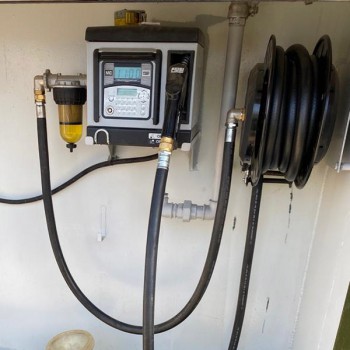

The Piusi Automatic Diesel Hose Reel has been designed specifically to work with low pressure diesel pumping systems such as vehicle refuelling applications. Popular with bunded fuel tank manufacturers for mounting directly onto the storage tank, this retractable diesel fuel hose reel can be supplied complete with a range of hose lengths, or as a bare reel should the user wish to add their own choice of hose. These diesel hose reels benefit from a sturdy steel structure for use in heavy duty environments, adjustable arm brackets for easy positioning and a protected latch mechanism to prevent injury to the hands when operating the reel. The bare version of the Piusi retractable diesel hose reel comes with a protection spring, hose stop and hose clamp for the easy connection of the user's choice of hose.

Features of the Piusi Retractable Fuel Hose Reel:

Automatic spring rewind fuel hose reel
Sturdy steel structure
Reduced pressure loss through hydraulic sizing
Protected latch mechanism which prevents injury
Adjustable arm brackets for easy positioning
Optional fixed or rotating support plate
Can be supplied with or without hose
3/4" and 1" versions available

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Code	Product	Description	Price (excl VAT)
F00750030	Piusi 1" Diesel Hose Reel c/w 10m Hose	Length (m) - 10 Max Pressure (Bar) - 10 Inlet - 1" F BSPP Swivel Outlet - 1" M BSPP Pressure Loss (Bar) - 0.7 @ 80 lpm	£567.28
F00750020	Piusi 1" Diesel Hose Reel c/w 8m Hose	Length (m) - 8 Max Pressure (Bar) - 10 Inlet - 1" F BSPP Swivel Outlet - 1" M BSPP Pressure Loss (Bar) - 0.6 @ 80 lpm	£517.96
F00750100	Piusi 3/4" Diesel Hose Reel c/w 14m Hose	Length (m) - 14 Max Pressure (Bar) - 10 Inlet - 1" F BSPP Swivel Outlet - 1" M BSPP Pressure Loss (Bar) - 0.8 @ 60lpm	£509.92
F00750040	Piusi 3⁄4" Diesel Hose Reel c/w 10m Hose	Length (m) - 10 Max Pressure (Bar) - 10 Inlet - 1" F BSPP Swivel Outlet - 1" M BSPP Pressure Loss (Bar) - 0.7 @ 60 lpm	£482.72
F00750090	Piusi 3⁄4" Diesel Hose Reel c/w 8m Hose SMALL	Length (m) - 8 Max Pressure (Bar) - 10 Inlet - 1" F BSPP Swivel Outlet - 1" M BSPP Pressure Loss (Bar) - 0.6 @ 60 lpm	£436.72
F00750180	Piusi 1" Empty Diesel Hose Reel - Max 15m XL	Max Length (m) - 15 Max Pressure (Bar) - 15 Inlet - 1" F BSPP Swivel Oulet - 1" M Hose Barb Pressure Loss (Bar) - 0.4 @ 80 lpm	£654.00
F00750010	Piusi 1" Empty Diesel Hose Reel - Max 10m	Max Length (m) - 10 Max Pressure (Bar) - 10 Inlet - 1" M BSPP Swivel Oulet - 1" Hose Barb Pressure Loss (Bar) - 0.2 @ 80 lpm	£434.68
F00750000	Piusi 3⁄4" Empty DieselHose Reel - Max 14m	Max Length (m) - 14 Max Pressure (Bar) - 10 Inlet - 1" M BSPP Swivel Oulet - 3⁄4" Hose Barb Pressure Loss (Bar) - 0.15 @ 60 lpm	£415.76
F00750080	Piusi 3⁄4" Empty Diesel Hose Reel - Max 9.5m SMALL	Max Length (m) - 9.5 Max Pressure (Bar) - 10 Inlet - 1" M BSPP Swivel Oulet - 3⁄4" Hose Barb Pressure Loss (Bar) - 0.15 @ 60 lpm	£324.20
F0075025A	1” Empty Hose Reel XL Steel hub	Max Pressure (Bar) - 10 Inlet - 1" M BSPP Swivel Oulet - 1" Hose Barb Pressure Loss (Bar) - 0.5@80 lpm	£648.60
F0075026B	1” Hose Reel XL Steel Hub c/w 15m hose	Max Length (m) - 15m Max Pressure (Bar) - 10 Inlet - 1" F BSPP Swivel Oulet - 1" M BSP Pressure Loss (Bar) - 0.8@80 lpm	£863.84

Accessories

Code	Accessory	Price (excl VAT)
F16279000	Rotating Support Plate Large For all reels excl. SMALL & XL	£46.16
F16298000	Fixed Support Plate Large For all reels excl. SMALL & XL	£17.40
F17317000	Rotating Support Plate Small For reels marked SMALL	£40.92
F17316000	Fixed Support Plate Small For reels marked SMALL	£24.40
OAB2270	1m Whip Hose 1" M x 1" M BSP	£27.20
OAB2271	1.5m Whip Hose 1" M X 1" M BSP	£28.36
OAB2272	2m Whip Hose 1" M X 1" M BSP	£30.84
