Piusi SB325_X Automatic AdBlue™ Nozzle c/w Meter
Availability: In Stock
Ex VAT: £35.28
Delivery
| Order total | Delivery |
| Under £30.00 (+VAT) | £20.00 |
| Over £30.00 (+VAT) | £15.00 |
Add to Compare

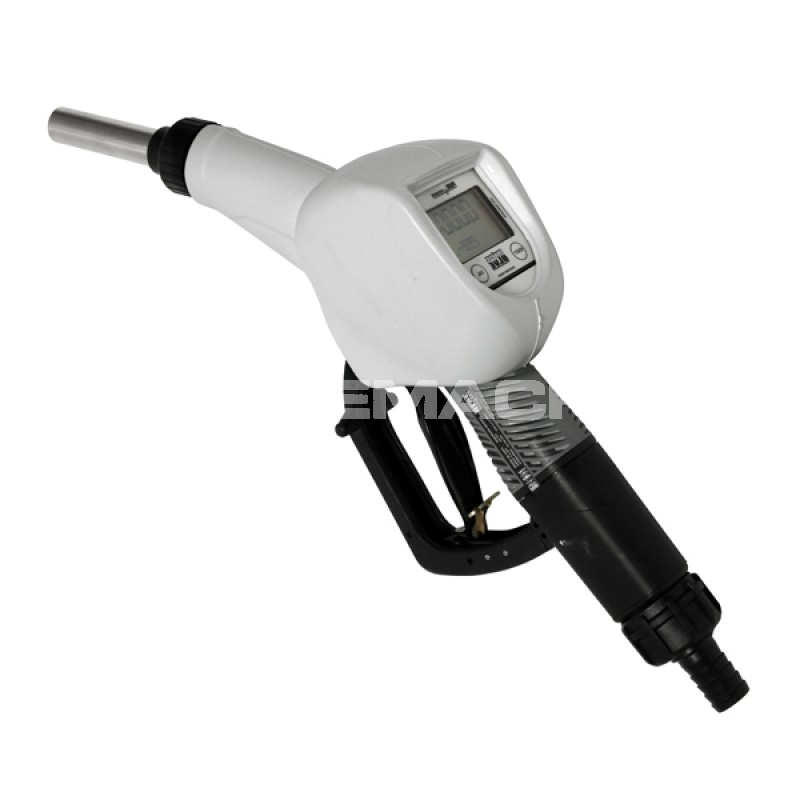

The Piusi SB325_X AdBlue™ Nozzle is a lightweight, plastic automatic nozzle with a stainless steel breakaway spout for use with AdBlue pump systems. The breakaway spout mechanism ensures that if the vehicle accidently drives away leaving the nozzle still in the vehicle's fill point, the spout will detach from the body of the nozzle. This means that damage will be limited to the spout only which can be replaced as a spare part, and the AdBlue pump system on the storage tank will not be pulled away with the force. Thanks to the integral turbine flow meter, this AdBlue™ nozzle has the added functionality for the user to conveniently view how much fluid has been dispensed into the vehicle.
Made from lightweight plastic but with a sturdy stainless steel spout, this Piusi nozzle is a cost effective alternative to the completely stainless steel automatic AdBlue™ nozzles previously only available on the market. Like these more expensive models, it still reliably shuts off dispensing when the AdBlue tank becomes full to prevent any overspill.
There is also a version of the SB325_X with added magnetic miss-filling spout to prevent AdBlue from being put in the diesel tank. This ensures that the AdBlue™ dispensing nozzle can only release fluid into a fill point that has a partnering magnetic adaptor fitted into it. By having magnetic adaptor fitted in the AdBlue™ fill point only, the AdBlue™ nozzle is unable to dispense into the diesel tank. View the SB325 AdBlue magnetic nozzle here.
Please note: Only for use with AdBlue pumps - not suitable for gravity fed installations.
Features of the SB325_X AdBlue™ Dispensing Nozzle:
- Automatic AdBlue™ nozzle
- Breakaway spout mechanism
- Incorporated flow meter
- Maximum flow rate: 35ltr Per Min
- Suitable for urea, water and chemicals
- Supplied with 3/4" plastic hose barb
- Fluid viscosity up to 6cSt
- Removable 3 position stay open latch
- Replacement spouts available
| Code | Product | Description | Price (excl VAT) | |
|---|---|---|---|---|
| F00617010 | Piusi SB325_X Automatic AdBlue Nozzle c/w Flow Meter & Breakaway Spout | Max Flow Rate (lpm) - 45 Max Pressure (Bar) - 3.5 Spout OD (mm) - 19 Inlet - 3/4" Plastic Hose Barb Integral Flow Meter Urea, Water and Chemicals |
£328.72 | |
| F15165000 | Elafix 40 AdBlue™ Magnetic Tank Adaptor | 19mm OD Compatible to ISO22241-3 Working Temp: -20°C to +85°C Weight: 65g For use with AdBlue magnetic nozzles |
£35.28 |
Accessories
| Code | Accessory | Price (excl VAT) | |
|---|---|---|---|
| R19173000 | Standard Replacement Spout Standard spout designed as a replacement for when the breakaway mechanism has occurred |
£26.64 | |
| R19172000 | Magnetic Miss-Filling Spout Prevents the miss-filling of AdBlue into a diesel tank by only releasing fluid into a vehicle tank that has a magnetic adaptor |
£56.52 | |
| F18400000 | Nozzle Override Magnetic Adaptor Fits over a magnetic spout to allow it to dispense when not in contact with a vehicle tank magnetic adaptor e.g. when filling a smaller container or if you have some vehicles with a tank adaptor and some without. |
£22.32 | |
| F19174000 | Nozzle Magnetic Adaptor + Spout Kit combination of the magnetic miss-filling spout and the nozzle magnetic adaptor |
£100.24 |
