Yellow Handle Lever Ball Valve

Yellow Handle Lever Ball Valve
Product Code: AX103-038
Availability: In Stock
Prices from: £5.14 (inc VAT)
Ex VAT: £4.28

Delivery

Order total Delivery
Under £30.00 (+VAT) £20.00
Over £30.00 (+VAT) £15.00

Available Options


* Model:

Qty:     - OR -   Add to Wish List
Add to Compare

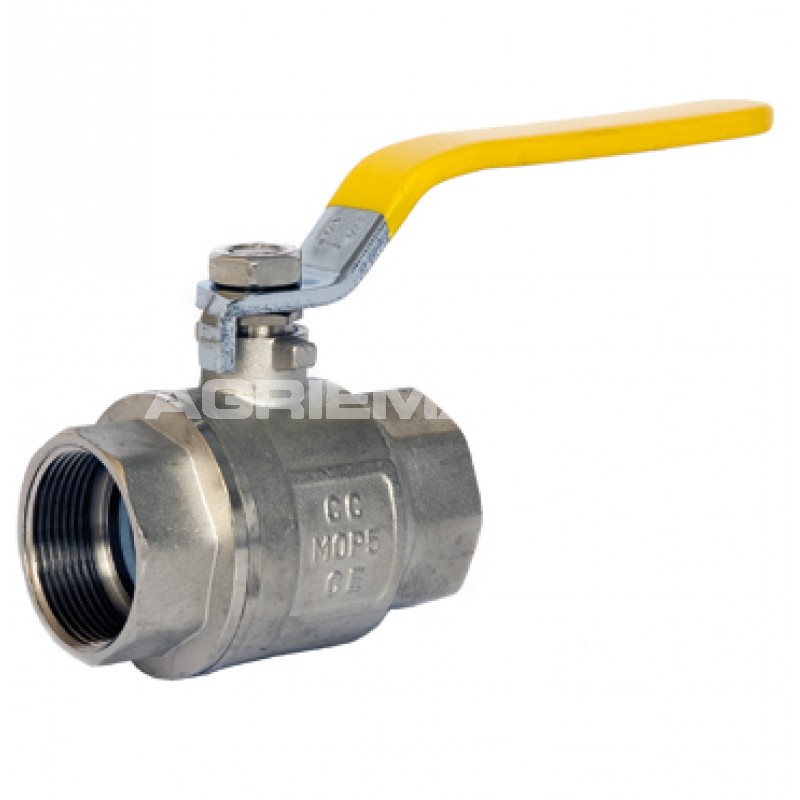

The Yellow Handle Lever Ball Valve is a nickel-plated full bore brass valve popular within gas, water and fuel applications and comes in a range of sizes. These lever ball valves are WRAS and EN331:1998 gas approved, have a steel handle, NBR o-ring and PTFE seals, and come in two different pressure ratings depending upon the size of the valve.

  • Brass ball valve
  • F x F BSP thread
  • WRAS & EN331:1998 gas approved
  • PN20 (¼” - 2") PN10 (2½” - 4") pressure rating
Code Product Description Price (excl VAT)
AX103-400 4" FxF Brass Lever Ball Valve Bore DN (mm) - 90
Thread Depth (mm) - 41.6
Length (mm) - 199
Height (mm) - 143
4" F BSP
For use with diesel, oil, water & gas
£211.44
AX103-300 3" FxF Brass Lever Ball Valve Bore DN (mm) - 73
Thread Depth (mm) - 36.8
Length (mm) - 168
Height (mm) - 132
3" F BSP
For use with diesel, oil, water & gas
£127.00
AX103-250 2½” FxF Brass Lever Ball Valve Bore DN (mm) - 62
Thread Depth (mm) - 31
Length (mm) - 146
Height (mm) - 122
2 1/2" F BSP
For use with diesel, oil, water & gas
£87.16
AX103-200 2" FxF Brass Lever Ball Valve Bore DN (mm) - 49
Thread Depth (mm) - 26.5
Length (mm) - 121
Height (mm) - 96
2" F BSP
For use with diesel, oil, water & gas
£44.52
AX103-150 1½” FxF Brass Lever Ball Valve Bore DN (mm) - 40
Thread Depth (mm) - 21
Length (mm) - 99
Height (mm) - 90
1 1/2" F BSP
For use with diesel, oil, water & gas
£29.24
AX103-125 1¼” FxF Brass Lever Ball Valve Bore DN (mm) - 31.5
Thread Depth (mm) - 20
Length (mm) - 88
Height (mm) - 81
1 1/4" F BSP
For use with diesel, oil, water & gas
£21.40
AX103-100 1" FxF Brass Lever Ball Valve Bore DN (mm) - 24.5
Thread Depth (mm) - 19.5
Length (mm) - 77
Height (mm) - 62
1" F BSP
For use with diesel, oil, water & gas
£12.68
AX103-075 ¾” FxF Brass Lever Ball Valve Bore DN (mm) - 19
Thread Depth (mm) - 18
Length (mm) - 67
Height (mm) - 49
3/4" F BSP
For use with diesel, oil, water & gas
£8.84
AX103-050 ½” FxF Brass Lever Ball Valve Bore DN (mm) - 14.5
Thread Depth (mm) - 15
Length (mm) - 57
Height (mm) - 52
1/2" F BSP
For use with diesel, oil, water & gas
£5.72
AX103-038 ⅜" FxF Brass Lever Ball Valve Bore DN (mm) - 10
Thread Depth (mm) - 11.5
Length (mm) - 45
Height (mm) - 41
3/8" F BSP
For use with diesel, oil, water & gas
£4.28
AX103-014 ¼” FxF Brass Lever Ball Valve Bore DN (mm) - 10
Thread Depth (mm) - 11.5
Length (mm) - 45
Height (mm) - 41
1/4" F BSP
For use with diesel, oil, water & gas
£4.44
