CIM 32DK Check Valve
Product Code: CIM1016
Availability: In Stock
Availability: In Stock
Prices from: £13.68 (inc VAT)
Ex VAT: £11.40
Ex VAT: £11.40
Delivery
| Order total | Delivery |
| Under £30.00 (+VAT) | £20.00 |
| Over £30.00 (+VAT) | £15.00 |
Qty:
- OR -
Add to Wish List
Add to Compare
Add to Compare

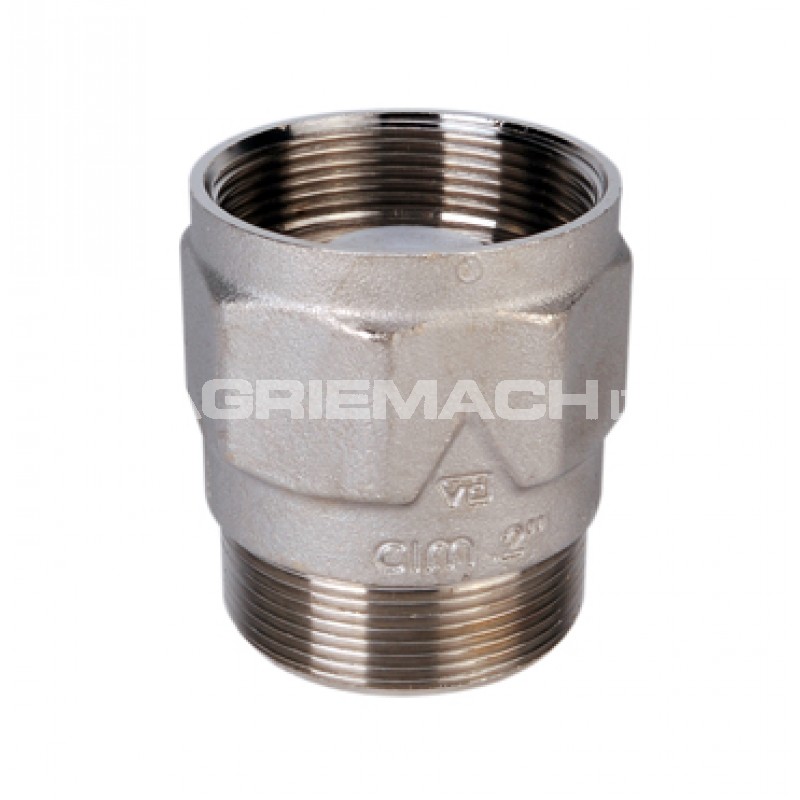

The CIM 32DK Check Valve is a spring loaded, brass non return valve that can be used for heating, sanitary, compressed air systems, pumps and fuel distribution networks. These check valves are suitable for installation in vertical, horizontal or oblique pipelines to allow flow in one direction. The CIM 32DK range of non return valves have M x F BSP internal threads on both the inlet and outlet, and have Viton seals.
- Forged brass body
- Stainless steel spring
- F x M BSP Inlet/Outlet
- Spring Pressure (bar / psi) of 0.01/0.14
- KIWA, WRC, NF, DVGW approved
| Code | Product | Description | Price (excl VAT) | |
|---|---|---|---|---|
| CIM1020 | 1 ½" MxF BSP CIM 32DK Non Return Valve | Body - Brass Spring - Stainless Steel Spring pressure (bar/psi) - 0.01/0.14 Seal - Viton 1 1/2" M BSP x 1 1/2" F BSP |
£58.20 | |
| CIM1018 | 1" MxF BSP CIM 32DK Non Return Valve | Body - Brass Spring - Stainless Steel Spring pressure (bar/psi) - 0.01/0.14 Seal - Viton 1" M BSP x 1" F BSP |
£23.12 | |
| CIM1017 | 3/4" MxF BSP CIM 32DK Non Return Valve | Body - Brass Spring - Stainless Steel Spring pressure (bar/psi) - 0.01/0.14 Seal - Viton 3/4" M BSP x 3/4" F BSP |
£19.68 | |
| CIM1016 | 1/2" MxF BSP CIM 32DK Non Return Valve | Body - Brass Spring - Stainless Steel Spring pressure (bar/psi) - 0.01/0.14 Seal - Viton 1/2" M BSP x 1/2" F BSP |
£11.40 |
