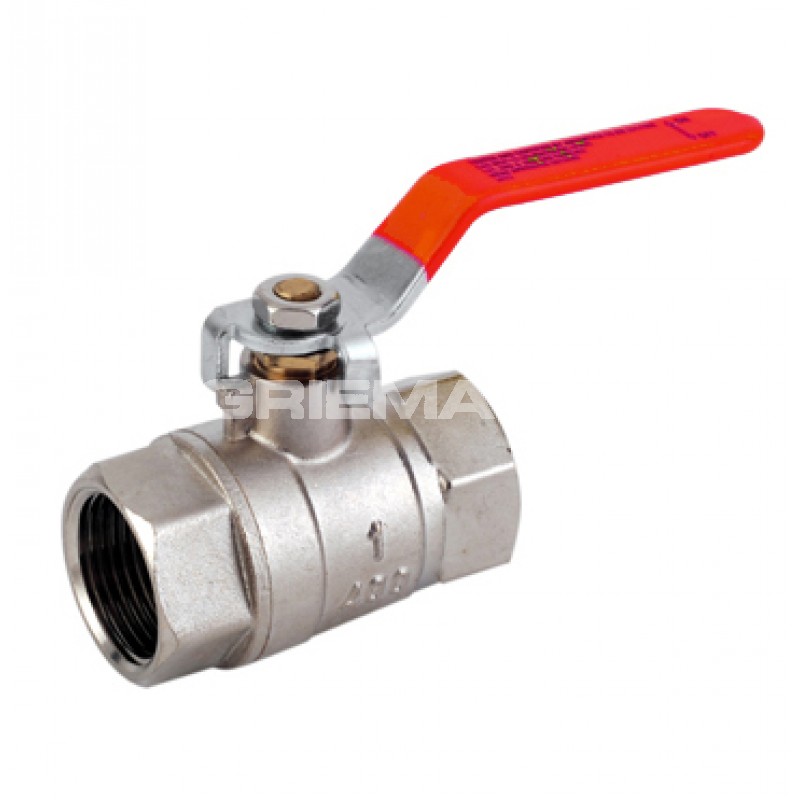

Cimberio Red Handle Lever Ball Valve

Cimberio Red Handle Lever Ball Valve
Product Code: LB4002
Availability: In Stock
Prices from: £9.07 (inc VAT)
Ex VAT: £7.56

Delivery

Order total Delivery
Under £30.00 (+VAT) £20.00
Over £30.00 (+VAT) £15.00

Available Options


* Model:

Qty:     - OR -   Add to Wish List
Add to Compare

The Cimberio Red Handle Lever Ball Valve is designed to be used with diesel, oil and water and is popular within fuel, plumbing, heating and waterworks applications.  These lever ball valves are manufactured in accordance with EN29000 – ISO9000 and is available in a range of sizes. All of the Cimberio ball valves have a HNBR o-ring and PTFE ball gaskets and come in two different pressure ratings depending upon the size of valve.

  • Brass ball valve
  • F BSP thread
  • PTFE ball gasket
  • EN29000 – ISO9000 approved
  • PN32 (¼" - 2") PN20 (2½" - 4")
Code Product Description Price (excl VAT)
LB4011 4" F BSP Fullway Red Ball Valve Bore DN (mm) - 100
Thread Depth (mm) - 35
Length (mm) - 205
Height (mm) - 162
4" F BSP
For use with diesel, oil & water
£747.32
LB4010 3" F BSP Fullway Red Ball Valve Bore DN (mm) - 76
Thread Depth (mm) - 28
Length (mm) - 171
Height (mm) - 137
3" F BSP
For use with diesel, oil & water
£255.00
LB4009 2½” F BSP Fullway Red Ball Valve Bore DN (mm) - 63
Thread Depth (mm) - 27
Length (mm) - 150.5
Height (mm) - 126
2½" F BSP
For use with diesel, oil & water
£181.12
LB4008 2” F BSP Fullway Red Ball Valve Bore DN (mm) - 50
Thread Depth (mm) - 29
Length (mm) - 130.5
Height (mm) - 88
2" F BSP
For use with diesel, oil & water
£65.04
LB4007 1½” F BSP Fullway Red Ball Valve Bore DN (mm) - 40
Thread Depth (mm) - 25
Length (mm) - 109.5
Height (mm) - 81
1½" F BSP
For use with diesel, oil & water
£43.52
LB4006 1¼” F BSP Fullway Red Ball Valve Bore DN (mm) - 32
Thread Depth (mm) - 22.5
Length (mm) - 92
Height (mm) - 66
1¼" F BSP
For use with diesel, oil & water
£35.44
LB4005 1” F BSP Fullway Red Ball Valve Bore DN (mm) - 25
Thread Depth (mm) - 22
Length (mm) - 83.5
Height (mm) - 56.5
1" F BSP
For use with diesel, oil & water
£19.04
LB4004 ¾” F BSP Fullway Red Ball Valve Bore DN (mm) - 20
Thread Depth (mm) - 19
Length (mm) - 69
Height (mm) - 52
3/4" F BSP
For use with diesel, oil & water
£12.84
LB4003 ½” F BSP Fullway Red Ball Valve Bore DN (mm) - 15
Thread Depth (mm) - 17.5
Length (mm) - 62
Height (mm) - 47.5
1/2" F BSP
For use with diesel, oil & water
£9.20
LB4002 3/8” F BSP Fullway Red Ball Valve Bore DN (mm) - 10
Thread Depth (mm) - 12.5
Length (mm) - 47
Height (mm) - 34
3/8" F BSP
For use with diesel, oil & water
£7.56
LB4001 ¼” F BSP Fullway Red Ball Valve Bore DN (mm) - 10
Thread Depth (mm) - 11.5
Length (mm) - 45
Height (mm) - 34
1/4" F BSP
For use with diesel, oil & water
£7.80
