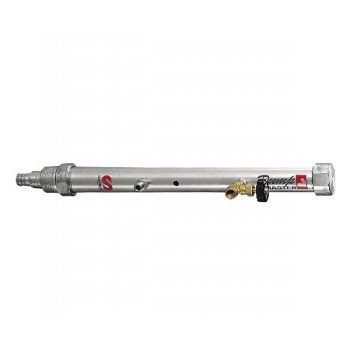

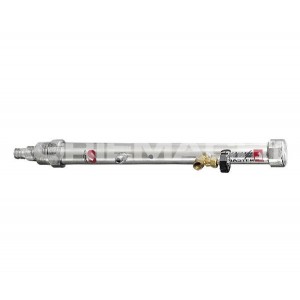

Pumpmaster 1 Fluid Pump 1:1

Low pressure air operated transfer pump compatible with slightly corrosive, low viscosity fluids, such as paint solvents, cleaning fluids, anti-freeze (glycol), detergents, grease removers, alcohols, turpentine, petrochemical products, anticorrosion products, light inks, lacquer, wood varnish, etc.

Technical data

Pressure ratio 1:1

Air piston diameter 36 mm (1.5”)

Air piston stroke 80 mm (3”)

Maximum free flow capacity 1 18 l/min (4.7 gpm)

Continuous duty flow rate 1 6.5 l/min (1.7 gpm)

Minimum air pressure 2 bar (28 psi)

Maximum air pressure 8 bar (115 psi)

Maximum fluid pressure 8 bar (115 psi)

Air inlet 1/4" BSP (M) with needle valve

Fluid outlet 3/8” BSP (M)

Fluid inlet 3/8” BSP (M) with adaptor for 1/2” suction hose

Bung adaptor thread 3/4” BSP (M)

Wetted parts Aluminum, stainless steel, chromium steel, PTFE and Viton®
